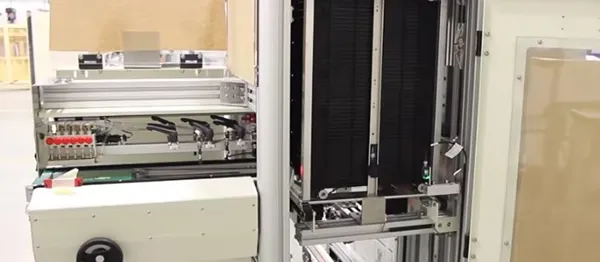

Cimtrak Magazine Loader

The Cimtrak Magazine Loader is designed to add a product into a magazine at the end of a manufacturing line. With standard PCB magazines, the machine can load up to 150 populated boards without operator intervention. The machine is designed to operate with Nikko Magazines, but can also be easily customized to handle other PCB magazine types.

Simplimatic’s electronics design philosophies have been highly regarded by the electronics industry since 1988 and are known to have an average service life of more than 15 years.

Each electrostatic dissipative Cimtrak product features:

• Solid conveyor belt construction – Non-spliced, fiberglass-reinforced transmission belts for superior strength
• Reliable DC stepper motors – Virtually service free and allows for precise adjustments to velocity, torque, and acceleration
• Premium rail design – Cimtrak conveyor features zero gaps between belt and edges to eliminate jams
• Adjustable in-feed tips – Can be lengthened by up to 4’’ for easy install
• Extruded aluminum framework – Provides light and strong chassis
• Industry 4.0 communication – Available with several PLC options and can be configured for smart industry 4.0 communication
