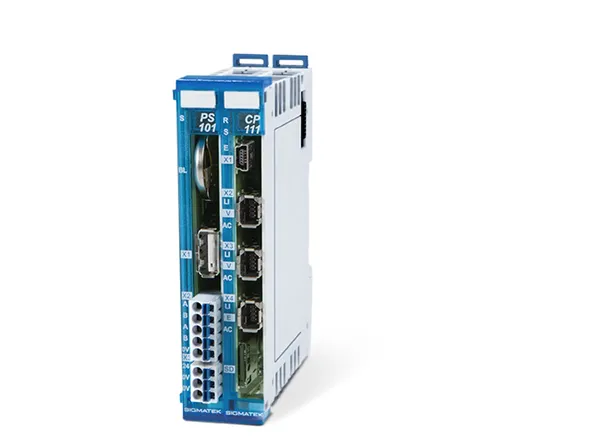

CPU Module CP 111

CPU Module CP 111

High-performance CPU modules (up to 64 local I/O modules)
EDGE2 Technology processor
OPC UA communication
1x Ethernet*, 2x VARAN Out*, 1x USB Device, microSD card
Voltage supply via power supply module PS 101: 1x CAN, 1x USB host, buffer battery

* Industrial Mini

A real-time clock and zero voltage proof RAM space with battery buffering available.

For the S-DIAS system, EPLAN-Makros are available for simple integration into the control cabinet.

Technical Data

Performance Data
Processor	EDGE2 Technology
Internal program and data memory	256 MB
Internal remnant data memory	256 kB SRAM (battery buffered)
Internal storage device	512-Mbyte microSD card
Interfaces	1x Ethernet (Industrial Mini I/O) 2x VARAN Out (Manager, Industrial Mini I/O) 1x CAN (via PS 101) 1x USB-Device 1.1 1x USB-Host 2.0 (via PS 101)
Supply voltage	+5 V DC from PS 101
