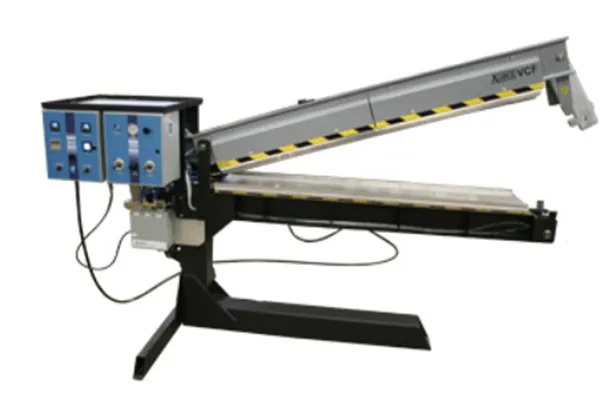

VCF Cantilever Press

The Cantilever VCF Press is the superior press for splicing lightweight rubber conveyor belting. With the increased pressure capacity of 5.3 kg/cm² (75 PSI), the Cantilever VCF is designed for rubber conveyors that do not require heavyweight splice equipment.

Features

• Hinging Upper aluminum frame
• Lower steel frame forms an integral support arm of cantilever stand
• Machined platens and frame
• FCP (frame-mounted control panel) electronic control system with programmable controllers, time and audio alarm, water cooling and air purge systems for automatic operation
• Stainless steel platens included
• Air control panel for hinging, locking and pressurization
• Available in most voltages
• Temperature variable up to 163 °C (325 °F)
• Optional higher temperatures available up to 200 °C (392 °F)

Product Information

Options:

• Clamps
• Water cooling system for faster cool down
• Cantilever upstroking lower platen for small circumference belts
