Shaw-Almex Industries Limited

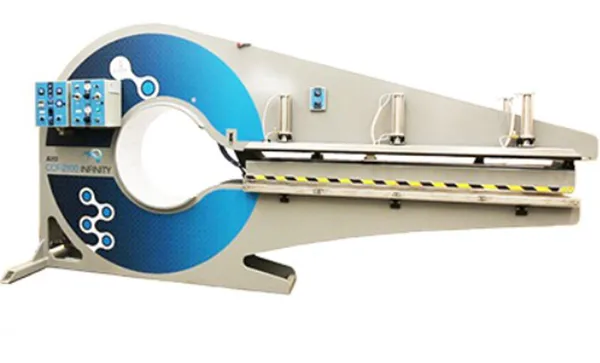

The CCF Infinity Lightweight Vulcanizing Press

Production Press – 3.2 kg/cm² (45 PSI) Maximum

The Infinity Lightweight Vulcanizing Press is designed for longitudinal and production splicing of lightweight conveyor belts. The unique design allows the spliced belt to wind up in the center of the press.

Features

• Extremely fast heat up: 10 minutes
• Water-cooled
• Versatile splicing - 2000mm - 2500mm (79” - 98”) belt widths
• Infinite length without interference
• Clamp feature without interference
• Two-station clamp control
• 3.2 kg/cm² (45 psi) pressure
• Pneumatic Belt clamps with separate operating function
• Available in various voltages

Product Information

PLATENS

• Rectangular size: 203mm x 2108mm (8”x 83”), with a 25mm (1”) cold zone for smooth transition as belt moves through the press
• The lower platen is floating to facilitate the belt moving and provide uniform pressure

FRAME

• The Infinity has a steel cantilever frame
• Note this is a very large shop press that requires location and logistic consideration

INTEGRATED CONTROL PANEL

• The Infinity has FCPs (Frame-mounted Control Panels) with dual OMRON digital readouts as well as automatic water cooling & air purge
• The air control panel facilitates hinging, locking & pressurization
• Pneumatic controls operate the belt clamping system

PRESSURE/COOLING

• The Infinity press has a downstroking operating pressure of 3.2 kg/cm² (45 psi)
• Uniform pressure is assured with the exclusive Almex pressure bag design (air pressure)
• The Infinity press is cooled by rapid integral water cooling
