IEC 61131 controller, Straton IDE, VPN router, integrated I / O, GPS, 4G LTE modem

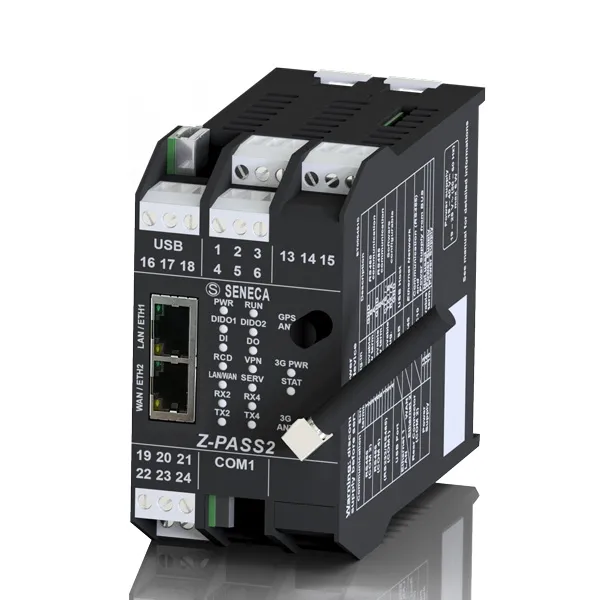

Z-PASS2-S (latest hardware revision Z-PASS2-S-4GWW) is an advanced IEC 61131 control unit that natively supports the SENECA LET'S remote assistance and remote control platform for Industry 4.0. This powerful CPU guarantees maximum reliability and security for data management and monitoring by combining PLC functionality (IDE Straton) with routing and remote access functions, supporting Point-To-Point type connections for Teleservice or Single LAN type for Remote Control ( for more information www.seneca.it/lets ).
The latest rev. Z-PASS2-S-4GWW hardware further improves CPU performance by integrating 6 I / O channels (1DI for remote connection security interlock, 1DO for signaling VPN connection in progress and other 4 configurable digital channels), a GPS receiver and a new 4G LTE modem with support for Worldwide bands .
Equipped with 2 Ethernet ports configurable in SWITCH or LAN / WAN mode, 3 serial ports and 1 USB port, Z-PASS2-S supports the ModBUS TCP server, ModBUS RTU master / slave, FTP / SFTP server, HTTP / HTPPS server protocols, OpenVPN encryption and protocols for Energy Management applications IEC 60870-101, IEC 60870-104, IEC 61850 (optional). The device integrates a 32-bit ARM9 CPU, 1Gb of Flash, 64MB of RAM and a memory expansion slot with microSD. Configuration takes place via Z-NET4 environment and web server.
TECHNICAL DATA
|
CODE:
|
Z-PASS2-S-4GWW
|
|
DESCRIPTION:
|
IEC 61131 controller, IDE Straton, VPN router with integrated I / O, GPS system and LTE 4G WW modem
|
|
DIET:
|
11..40 Vdc; 19..28 Vac
|
|
MAX ABSORPTION:
|
Typical 4W @ 24Vac, Max 6W
|
|
ISOLATION:
|
1,500 Vac
|
|
STATUS INDICATORS:
|
Power / Ready to use
Input / output
status Remote connection (RCD)
VPN connection (VPN)
LAN / WAN (Ethernet LAN / WAN mode)
SERV (VPN BOX Service)
Rx-Tx serial communications
Link and Ethernet traffic
|
|
OPERATING MODE:
|
Bridge
Gateway
Router ETH / 4G (redundant connection)
Remote Virtual COM
Tunnel P2P / P2MP / TCP / UDP
VPN
|
|
4G LTE BANDS SUPPORTED
|
LTE-FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28
LTE-TDD: B38 / B39 / B40 / B41
WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19
GSM: B2 / B3 / B5 / B
(see user manual for more information)
Certifications: Deutsche Telekom (Europe) Verizon * / AT & T * / T-Mobile * / Sprint * (North America )
|
|
I / O CHANNELS
|
no. 1 DI for Enabled VPN Connection
nr. 1 DI for generic use
nr. 1 DO for VPN connection in progress
nr. 1 DO for general use
nr. 2 configurable DI / DO
|
|
ETHERNET PORTS:
|
no. 2 10 / 100Tx on front RJ45
|
|
SERIAL PORTS:
|
no. 1 RS232 / 485 switchable via webserver, baud rate max 115k on connector
nr. 1 RS485, baud rate max 115k on IDC10 connector for bus and terminals
nr. 1 RS485, baud rate max 115k on terminals
|
|
SUPPORTED PROTOCOLS:
|
FTP server, SFTP server
HTTP server, HTTPS server
SMTP / SMTPS
SNMP client
SAMBA (MS Windows)
SIEMENS S7 Client
MQTT Client
OPC-UA Server / Client
Modbus RTU Master / Slave
Modbus TCP Server / Client
M-BUS master (via optional module Z -MBUS)
IEC 60870-101 slave (opt.)
IEC 60870-104 server (opt.)
IEC 61850 server / client (opt.)
|
|
VPN SUPPORT
|
OpenVPN VPN Box
|
|
GPS RECEIVER:
|
GNSS: GPS / GLONASS / BeiDou / Galileo / QZSS up to 55 channels
|
|
USB PORTS:
|
no. 1 USB 2.0 type A host on side connector
|
|
OPERATING TEMPERATURE:
|
-20 ° C .. + 65 ° C
|
|
DIMENSIONS WXHXD:
|
52.5x100x112 mm
|
