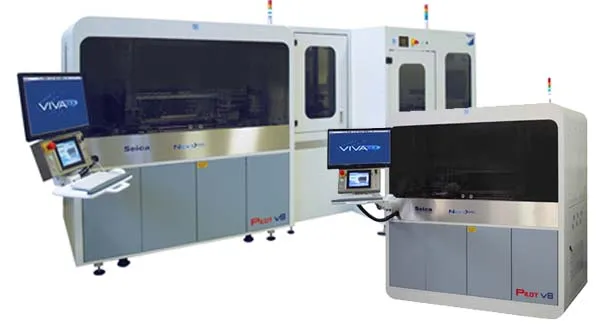

Pilot V8

Pilot V8

The Pilot Next> series V8 represents the latest in flying probe test technology; it is the complete solution for those who want maximum performance: the highest test speed, for low to medium volume, test coverage and flexibility, for prototyping, manufacturing or repairing all types of assemblies. Its vertical architecture is the optimal solution for probing the test object from both sides at the same time.

Pilot Next> series V8 is suitable for:

• Vectorlose und In-Circuit Tests
• Programming and functional tests
• Boundary Scan Test
• Medium/high volumes with automatic handler
• Highly integrated prototypes
• High mix products
• Assemblies not designed for testing
• Reverse engineering and repair

traits and skills

• 8-Flying Probe test unit (4 on each side)
• Vertical architecture to reduce deflection and vibration.
• Both sides above and below are equipped with Power Probe, Capacitive Probe and Camera.
• Manual or automatic loading (optional loader/unloader)
• In-Circuit Tests, On-Board Programming, Boundary-Scan
• Quick-Test' test for the functional test sequence implementation
• Fixed channels available (connectable manually or via plugs)
• Off-line programming and repair stations
• Barcode and 2D reading capability; automated collection of statistical data.
• Automated programming with CAD data import
• Repair tool: PWMON (network analysis of powered DUTs), thermal scan (temperature monitoring), DES (software to support error probabilities)
