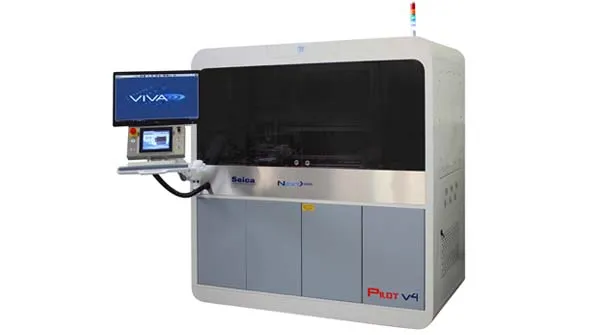

Pilot V4

Pilot V4

The Pilot Next> series V4 is a full-featured, double-sided flying probe test system with an extremely high degree of flexibility, making it the ideal solution for those who have a wide variety of testing requirements, from prototypes to small/medium production volume, to Field return repair and reverse engineering. The vertical, compact architecture and the excellent circuit board clamping system ensure that the DUT does not oscillate, which enables precise positioning of the probes on the test points.

Pilot Next> series V4 is suitable for:

• Electronic assembly repair
• reverse engineering
• Programming without CAD data
• Assemblies Not Designed for Test (DFT)
• Low volume production
• High mix production
• Hybrid testing in conjunction with external instruments

Characteristics

• Test unit with 2 flying probes on each side
• Manual loading
• Reverse engineering and recovery of electrical schematics
• Vectorless measurements, node impedance and in-circuit tests
• Thermal tests and visual inspection on both sides
• Possibility to connect external resources (instruments, power supply units) to the DUT
• Offline programming and repair station
• Barcode and 2D code reading capability
• Automated Statistical Data Collection for Error Probability
