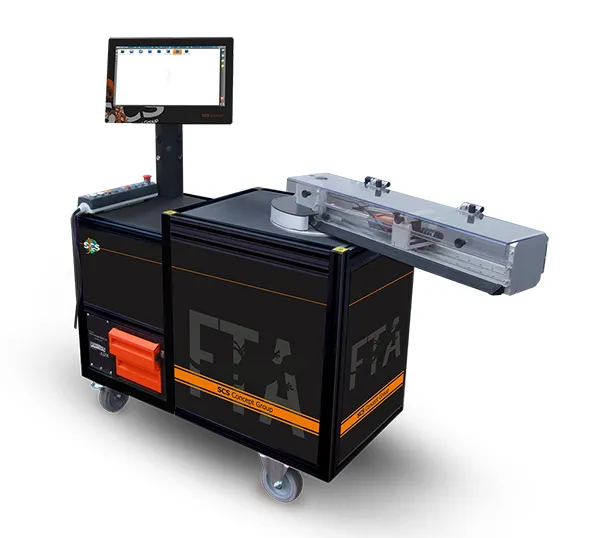

FTA – Automatic Torque-Angle Wrench Tester

FTA – Automatic Torque-Angle Wrench Tester

FTA

FTA bench performs an automatic test of torque/angle digital wrenches, according to VDI/VDE 2645 part 2 and VDI/VDE 2647.

The transducer can be lowered down to test wrenches with extensions, to evaluate the effect of the extension itself on the wrench measurement.

The bench is driven by a pendant control box to operate it safely.

Functions

• Automatic test of digital wrenches according to VDI/VDE 2645 part 2 and VDI/VDE 2647
• Compared test
• Clockwise or counter clockwise test
• Database with tools archive, tests scheduling and execution, results storage
• Reports and statistics
• Equipped with hydraulic brakes of customizable capacity, so to provide a bench to test all the tools present on the production line
• Stand-alone bench, can be also programmed by a production line quality control management software
• Local or server database
• Torque accuracy less than 0.5% according to DIN 51309
• Angle accuracy less than 0.25° according to VDI/VDE 2648 page 1
• VAC power supply with back up battery
