Standard Pulse Jet Baghouse

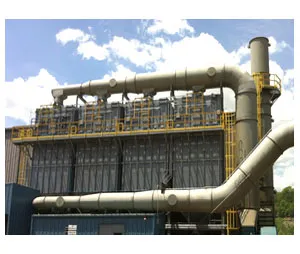

Standard Pulse Jet Baghouse

Features like our exclusive Filter Fit System have been developed to provide a positive mechanical-assist seal at the tube sheet in all of Schust™ LIBERATOR Standard Pulse Jet Baghouse collectors.

An exacting, reinforced venturi and rolled bottom cup cage are stabilized to provide superior support ensuring a focused, efficient pulse for accurate filter clean down and performance where it counts the most for a Standard Pulse Jet Baghouse.

Additional Standard Features

• Typically ships as a pre-assembled single unit from the factory. Field assembly and install costs are reduced.
• Modular design for application and volume flexibility.
• Snap-in filter tube sheet design.
• Welded 10 gauge carbon steel construction.
• Operating temperatures to 275° F.

Comes Complete With

• 100% Polyester filters with double beaded stainless steel snap band.
• Rugged 12 wire filter support cages with reinforced integral venturi.
• Double diaphragm pulse valves and compressed air manifold system with NEMA 4 solenoid pilot valve enclosures.
• Programmable solid-state timer controls in a NEMA 4 enclosure. Pre-wired and set-up for continuous cleaning.
• Caged ladder and access platform designed to meet OSHA safety requirements.
• Structural steel support.
• Primed and painted with industrial grade enamel.
