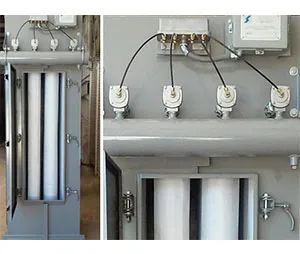

Bottom Access Pulse Jet Bin Vent Baghouse

Bottom Access Pulse Jet Bin Vent Baghouse

Schust™ LIBERATOR PVB Bottom Access Baghouse models ensure safe filter maintenance from silo-top elevation.

PVB bin vents incorporate a hinged access door with easy-grip zinc-plated handles allowing tool-less entry.

Our OEM venturi design maximizes cleaning potential ensuring pulse efficiency.

Emergency filter change-outs performed quickly regardless of the weather, making the Bottom Access Baghouse bin vent suitable for critical operations requiring minimal down time.

Additional Extended Features

• Units install directly on bins and silos via the supplied flanged inlet. Ductwork is eliminated and installation expenses reduced.
• The PVB series offers 17 to 432 ft2 of cloth area per unit with 3′, 4′, 6′, or 8′ long filter bags.
• Economical solution to meet ever increasing regulatory requirements.
• Welded 12 gauge carbon steel construction.
• Operating temperatures to 275 °F.
• Tuned pulse jet cleaning system with low compressed air requirements to save on energy costs.
• Hinged Access door.

Comes Complete With

• Self-supported 100% Polyester felt filters.
• Rugged 12 wire filter support cages.
• Programmable solid-state timer controls in a NEMA 4 enclosure. Prewired and programmed for continuous cleaning.
• Wire mesh internal bottom grid.
• Primed and painted with industrial grade enamel.

Operating Requirements:

• 115 VAC, 60 Hz. single phase current required for sequence timer.
• 90 to 100 PSIG clean, dry, uncontaminated compressed air supply.
