CSN® Ex space heaters

HomeCSN® Ex space heaters

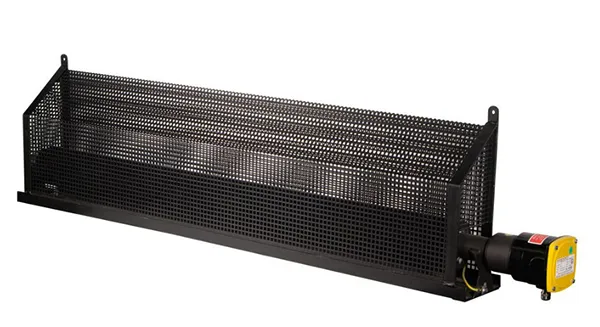

CSN® EXPLOSION PROOF SPACE RADIATORS

CSN® Ex space heaters are used for heating areas at risk of explosion in zones 1 and 2. Standard devices are available in the common temperature classes T1 to T4; temperature classes T5 and T6 can be offered on request.With CSN® explosion-proof space heaters , the use of corrugated finned tubes remains the most economical solution for heat transfer in the electric radiator environment. With the process of winding corrugated strip material onto different pipe qualities, we achieve extremely large pipe surfaces and, as a result, low surface temperatures. We use this interaction to produce explosion-proof room heaters of a high quality.theCSN® Ex-finned tube radiators are mounted horizontally and are suitable for both wall and floor mounting (for permanent connection).

Product advantages of our CSN® Ex space heaters

• Safety as top priority!
• The Ex space heater is manufactured in accordance with ATEX and the latest Ex standard IECEx.
• The electrical connection hoods meet protection class IP 66 (IP 67 on request).
• Convenient connection due to the Ex de IIC type of protection "Flameproof Enclosure" and "Increased Safety"
• For use in Zone 1 or 21
• For aggressive environments, the radiators can be used in "steel galvanized, painted" or made of "stainless steel".
• An exTHERM-AT temperature controller is available for precise temperature monitoring.
• Also suitable for the ship industry in connection with the protective grille "M"; partly with DNVGL approval.
• With performance that lasts and is built to last.

Typical areas of application for our CSN® Ex space heaters

• gas control stations
• sewage treatment plants
• gas filling stations
• paint stores and paint shops
• gas tankers
• offshore installations
