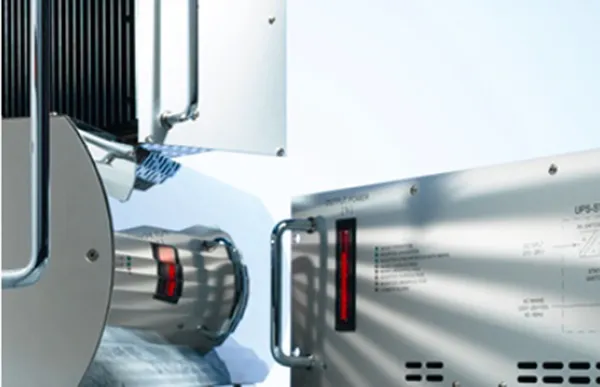

AC-AC Frequency Converter

AC-AC Frequency Converter

• Input voltage: 10-800V DC or 115/ 230V AC, single phase, 47-400Hz or 200/ 400/ 480V AC, three phase, 47-400Hz
• Output voltage: 115/ 230 V AC, single phase or 200/ 400/ 480V AC, three phases
• Output frequency: 50/ 60/ 400/ 800Hz (crystal stabilized) or programmable within 40-400Hz or 400-800Hz
• Output power: 200VA - 45kVA

Features

• Sine Wave
• Continuous short circuit protection
• Thermal shutdown with auto-restart for 1-phase inverters >1.2kVA 3-phase inverters >3.6kVA
• Suitable for complex load
• Surge power capability
• Industrial grade components
• Compact and robust design
• 3-phase output: Unsymmetrical load permissible, modular system with interchangeable inverters
