Samlex America Inc

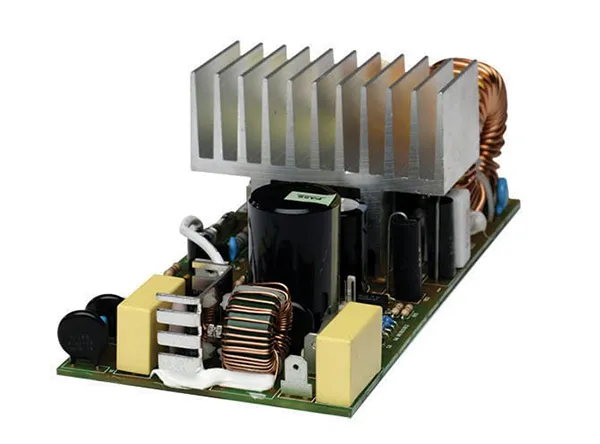

20 Amp Open Frame SMPS Modular Power Supply (230V)

20 Amp Open Frame SMPS Modular Power Supply (230V)

SEC-2012MPSB-230

Open frame SMPS modular power supply. Used as modules in BRM series or can be used independently. Can be operated in parallel. Provides a highly regulated output DC voltage of 14.2 Volts at 20 Amps with an AC input of 230 Volts, 50 Hz (120 Volts, 60 Hz model also available).

Features

• Provides N+1 redundancy (2 or more running in parallel)
• Expand output power by adding power modules
• Operation status LED
• Remote indication of operation status
• Open frame construction

Specifications

Input: 108-132 VACOutput: 14.2 VDCAmps: 20 AmpsWeight: 0.73 (kg)Weight: 1.6 (lbs)Dimensions: 7.2 x 3.4 x 2.5 (in)Dimensions: 18.3 x 8.6 x 6.4 (cm)

Applications

• Any critical power supply application
• Telecommunications systems
• Mobile sound/audio displays
• GPS receivers
• Security systems
• CCTV systems
