10 Amp Switching Power Supply

10 Amp Switching Power Supply

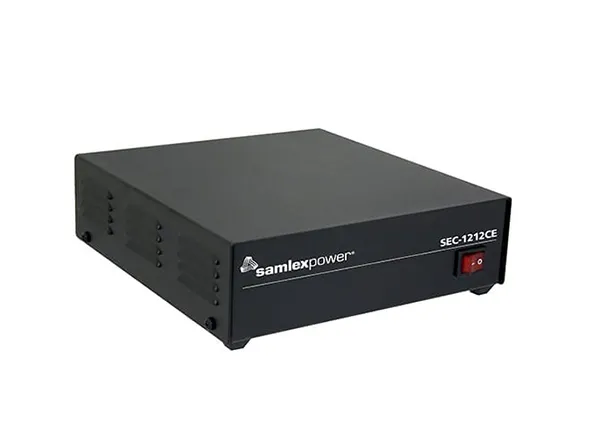

SEC-1212CE

This high efficiency AC-DC power supply provides a highly regulated output DC voltage of 13.8 Volts at 10 Amps with an AC input of 230 Volts, 50 Hz. These advanced switch-mode DC power supplies were designed specifically for use with land mobile radio. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with “Schuko” plug. Features include over-current, short-circuit and over-voltage protection. The AC-DC power supply conforms to EN60950 safety standards and EN55022 class B, EN6100-3-2,3 and EN61000-4-2,3,4,5,6,8,11 EMI/EMC standards.

Features

• Advanced switch-mode technology
• Reliable power with minimum weight and size
• Circuit innovations minimize output voltage ripple and RFI
• Input voltage 230 VAC

Specifications

Input: 230 VACOutput: 13.8 VDCAmps: 10 AmpsFuse: 3 AmpsWeight: 4.2 (lbs)Weight: 1.9 (kg)Dimensions: 8.19 x 7.28 x 2.4 (in)Dimensions: 20.8 x 18.5 x 6.1 (cm)Safety: RoHS COMPLIANT

Applications

• Two way radio base stations
• Communications systems
• Security systems
• Test equipment
• Plotters
• GPS receivers
• Automotive & Marine displays
• DC computers
• 12 Volt lighting systems
• OEM applications
