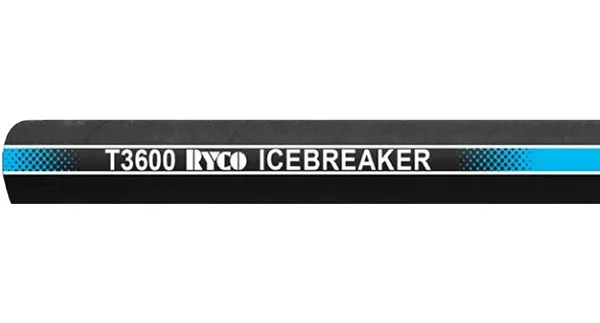

T3600 IceBreaker
High pressure hydraulic oil lines in applications where low temperature environmental conditions exist.
Construction
TUBE: Black, specially formulated oil resistant synthetic rubber.
REINFORCEMENT: One braid (-04 to -06 size) or two braids (-08 to -16 size) of high tensile wire.
COVER: Black, oil resistant and abrasion resistant synthetic rubber.No skiving required with T2000 Series Crimp Couplings.
Performance
Meets or Exceeds the Performance Requirements of:
ISO 18752-BC.
FEATURES: Extremely Flexible. Minimum Bend Radius 25% less than published SAE 100R17 Minimum Bend Radius. Tested to 500,000 cycles. Constant pressure 250 bar/ 3625 psi in all sizes for easy system design and hose selection. Small bend radius and compact dimensions are advantages in installations.
TEMPERATURE RANGE: From -60°C to +100°C (-76°F to +212°F). For water, emulsions etc. see page 58.
WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
