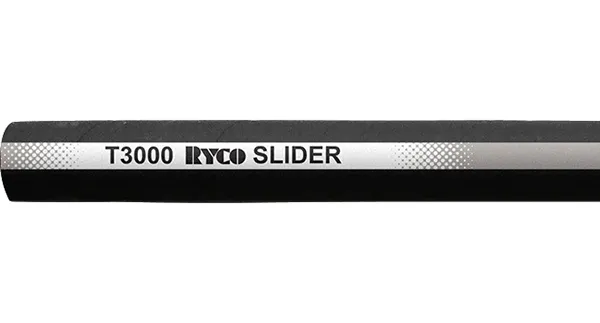

T3000 Slider
T3000 Slider
High pressure hydraulic oil lines. Constant pressure (Isobaric) 215 bar / 3100 psi in all sizes. Small bend radius and compact dimensions are advantages in installations.
Construction
TUBE: Black, oil resistant synthetic rubber.
REINFORCEMENT: One braid (-04 to -08 size) or two braids (-10 to -16 size) of high tensile steel wire.
COVER: SLIDER Black, oil and extremely abrasion resistant synthetic rubber sheathed with a layer of extremely abrasion resistant polyethylene. Flame Resistant, MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T2000 Series Crimp Couplings.
Performance
Meets or Exceeds the Performance Requirements of:
ISO 18752-BC, SAE 100R17.
FEATURES: Tested to 1 million impulse cycles. Constant pressure 215 bar / 3100 psi in all sizes for easy system design and hose selection. Small bend radius and compact dimensions are advantages in installations.
MSHA – FLAME RESISTANCE: SLIDER complies with Flame Resistant requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.
TEMPERATURE RANGE: -40°C to +100°C (-40°F to +212°F). For water, emulsions etc. see page 58.
WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
