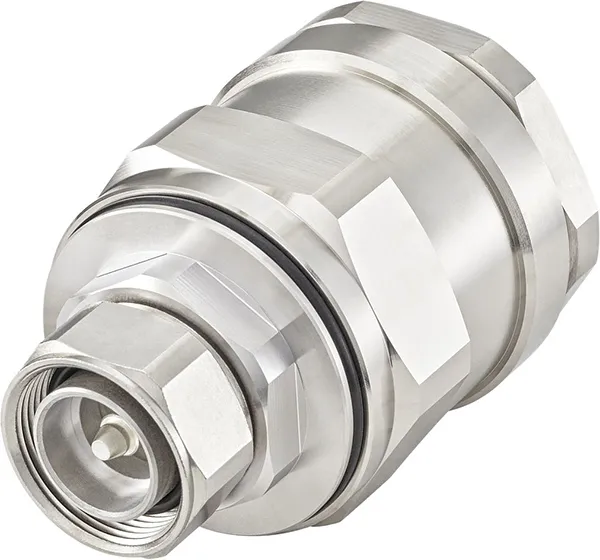

RF Cable Assemblies 7-16

RF Cable Assemblies 7-16

7-16 connectors are high-quality coaxial solutions with low attenuation and intermodulation for frequencies up to 7.5 GHz. They are suitable for medium to high power transmission in outdoor applications such as mobile communications due to their high mechanical stability and excellent weather resistance.

Product Portfolio

•    Cable connectors (semi-rigid, semi-flexible, corrugated cables)
•    Panel connectors
•    Cable assemblies
•    Adaptors
•    Calibration kits
•    Measurement equipment & accessories
•    Tools

Features

•    Impedance 50 Ω
•    Interface according to IEC 61169-4, EN 122190, DIN 47223
•    Frequency range DC to 7.5 GHz
•    Return loss (cable connector straight):
•    ≥ 32 dB @ DC to 0.5 GHz
•    ≥ 21 dB @ 0.5 GHz to 4 GHz
•    ≥ 17 dB @ 4 GHz to 7.5 GHz
•    Mating cycles ≥ 500
•    Minimum pitch ≥ 32 mm
•    Screw-on locking mechanism

Benefits

•    Low attenuation
•    Low PIM
•    Mechanical stability
•    Excellent weather resistance
•    Easy installation
