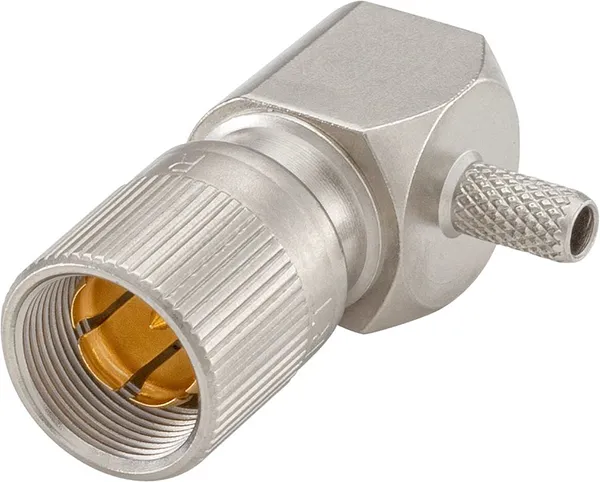

1.6-5.6 connectors perform at 75 Ohm up to 4/12 GHz and are characterized by high mechanical and electrical stability. They are mainly used for reliable transmission of high bit-rates.

IInd and IIIrd generation 1.6-5.6 connectors are intermateable and feature different coupling mechanisms for allowing male types to be connected to all female types.

The screw-on coupling version provides positive, familiar mating, while the quick-lock/push-pull coupling version enables quick installation. This series complies with CECC 22240 standards.

Locking Mechanisms, Male Types

• Type A: Screw-on locking
  Screwing plug and jack by hand using a coupling nut.
• Type B: Snap-on locking
  Male connector with spring mechanism; snaps into slot on female connector body.
• Type C: Slide-on locking with centering sleeve
  Conical insertion guide of floating male connector facilitates connection to fixed female connectors. Interconnection is a slide fit.
• Type F: Quick-lock/Push-pull locking mechanism
  Quick-lock mechanism for fast, easy and reliable connections in the tightest of spaces. Assembly tools are not necessary.

Features

•    Impedance 75 Ω
•    Interface according CECC 22240
•    Frequency range DC to 4 GHz (IInd generation), DC to 12 GHz (IIIrd generation)
•    Return loss (cable connector straight)
•    ≥ 33 dB @ DC to 1 GHz (IIIrd generation)
•    ≥ 27 dB @ 1 GHz to 2 GHz (IIIrd generation)
•    ≥ 20 dB @ 2 GHz to 4 GHz (IIIrd generation)
•    Mating cycles ≥ 500
