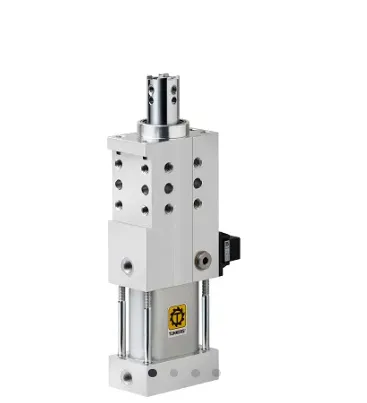

TUNKERS Pneumatic Clamping
Trust Tunkers pneumatic clamp performance in harsh conditions
Tunkers pneumatic clamps (power clamps) are widely used in welding fixture applications where harsh environmental conditions exist. The German precision design and engineering has earned this company a peerless reputation for these workholding essentials.
Tunkers power clamps incorporate a flat design with built-in toggle mechanism to provide high clamp forces. These help ensure workpieces remain clamped even when or if air pressure is lost. Available with integrated, cartridge type detection switches, it’s possible to fully monitor the clamp condition in automated set-ups as for robot cells.
The toggle mechanism is fully encapsulated within the light weight aluminium body construction and electrical cables are weld spatter resistant, enabling clamps to operate continuously in extreme environments.
Need flexibility? See TunkersVario-Clamp
In addition to the standard range of power/pneumatic clamps, Tunkers also has a Vario-Clamp version that allows field setting of the clamp opening angle for fastest possible cycle times and opening angle to easily set with an allen key wrench.
The entire range starts with mini-clamps in three sizes:
from 16mm to 25mm bore
compact clamps from 25mm to 40mm bore size
power clamps from 50mm to 80mm bore size
The compact 25mm unit is also available in a ‘safety-clamp’ version which provides low approach force of less than 10N and full clamping of 250N at the final 6mm of stroke. A full range of standard clamp arms, options and mounting accessories is provided to support the clamp installation.
In addition to the power/pneumatic clamp series, Tunkers also offers a range of pneumatic swing clamps in both block and threaded body styles for use in welding fixtures.
