Regal Rexnord Corporation

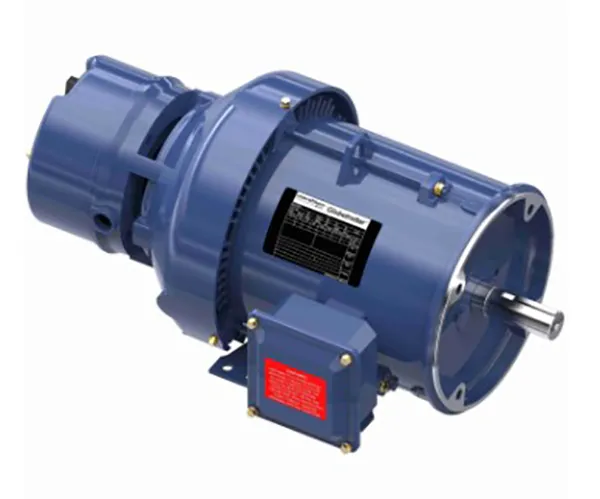

Marathon Brake Motor C411

Marathon Brake Motor, 5 HP, 3 Ph, 60 Hz, 230/460 V, 1800 RPM, 184TC Frame, TEFC - C411

KEY FEATURES

• IP-43 rolled steel, Meets or exceeds NEMA Premium® efficiencies, NEMA Premium models are in compliance with EISA2007
• Class F Insulation System, Inverter duty 10:1 variable torque and 10:1 constant torque & 1.15 service factor on Sine Wave Power 1.0 SF on Inverter Power
• F1/F2 capable, Dynamically balanced rotors, Steel conduit box
• Dual Frame Mounting
• Modifications and Kits are available
• 40°C Ambient 1.15SF Sine Wave Power and 1.0SF inverter power
• UL®* listed, UL certified for Canada and CE®* mark
