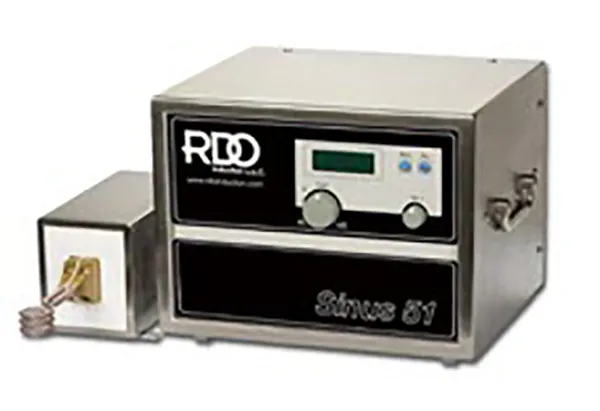

Sinus High Frequency Induction Generators

Sinus High Frequency Induction Generators

The Sinus High Frequency Induction Generators are available in 5 to 25kW and are available in frequency ranges from 500-2000 kHz, making them ideal for high-frequency skin effect or surface heating, precise heating of small parts, and tight heat zones. The systems are produced from the latest in solid-state MOSFET technology. Remote heat stations allow for bench-top process in tight spaces and are easily integrated into automated environments.

SYSTEM FEATURES:

• Available in 5kW, 10kW and 25kW of power
• Frequency Ranges of 500-1000 kHz and 1000-2000 kHz
• Solid-state MOSFET Technology
• 100% Duty Cycle
• Standard remote heat station with flex cable connection
• I/O interface for External Control
• Compact design
• Systems can be equipped with two heat stations that can be activated alternately
• Optional Interfaces (Profibus, Profinet and RS232)
• Optional infrared pyrometer connection

Applications:
