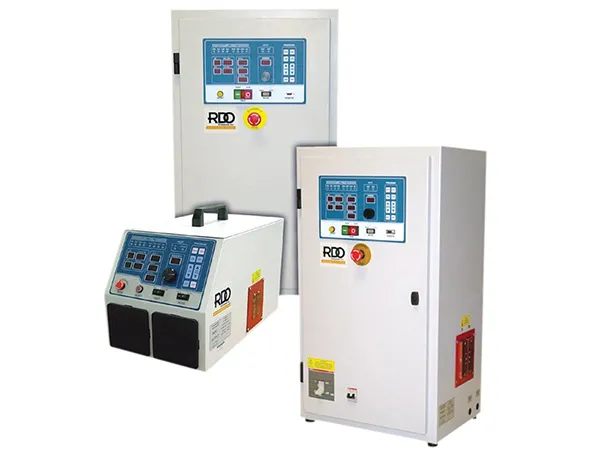

LFI-HFI high frequency induction systems
LFI-HFI high frequency induction systems
The LFI and HFI series of power supplies offer a wide range of frequencies (LFI-35-100 kHz and HFI-135-400 kHz) in power from 3.0 to 100 kW, which correlates to technical effectiveness in a variety of customer applications. Designed with an adjustable tank capacitance and multi-tap output transformer, the LFI/HFI high frequency induction systems are flexible and reliable to meet your most demanding manufacturing conditions.
HIGH-FREQUENCY INDUCTION HEATING MODEL FEATURES:
- Modern Compact Design: suitable for a wide range of applications with its rugged, reliable construction. It meets demanding conditions imposed by high production processes
- Systems are rated for 100% Duty Cycles
- Highly Efficient MOSFET based Solid State Circuitry
- Broad frequency range; 35-110 kHz (LFI) and 135-400 kHz (HFI)
- Trouble free tuning to a variety of loads
- Remote Interface with 0-5V and/or 4-20mA input
- Input cooling water to 105°F
- Power Supply Range from 3kW to 120kW Output Power
- Standard User Interface for connection with external devices (PCL) monitoring and automation integration
- User programming allows user to set up to 12 separate jobs with up to 25 steps per job
DIAGNOSTIC SYSTEMS & METER DISPLAYS
All RDO Induction Model LFI/HFI High Frequeny Induction Heating Systems are equipped with Diagnostic Limit Indicators for Voltage, Power, Frequency and Current, along with Trip Indicators for Frequency, Current, Over Temperature, Door/Cabinet Interlock and Water pressure. These indicators are located on the front panel for ease of diagnostic control. All RDO Induction Model LFI/HFI Induction Heating Systems are also equipped with a full scale Meter Display, which allows the user to monitor Power Output, Voltage, Frequency and Current.
High frequency induciton system heating applications for the RDO Induction LFI/HFI family of power supplies include Induction Brazing, Induction Soldering, Hardening, Induction Annealing, Induction Bonding, Induction Case hardening, Induction Wire & Cable processing, Getter Firing, Hot Heading/Forming, Induction Shrink Fitting, Catheter Tipping and Induction Stress Relieving.
