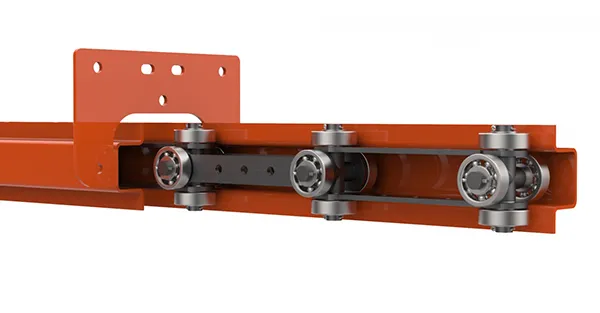

D8 Chain Conveyor

D8 Chain Conveyor Specifications

Track load: 200 kg/mMax. load per hanger plate: 150 kg*

*depending on hanger plate configurationThe D8 chain conveyor system is our oldest and most popular motor-driven conveyor, with a chain that moves within a rail system.

A helical or caterpillar drive unit engages with the conveyor chain, moving it forward. An (optional) automatic lubrication unit can be installed, to make sure that the joints of the conveyor chain are regularly lubricated during operation.

At fixed intervals, product holder “hangers” are installed as per the client’s requirements. This can be a simple plate or a flight bar depending on the installation and its requirements. It will transport the desired product along the conveyor.

The hangers can be unloaded once the product has completed its route through processes like painting or curing, after which the hangers can be loaded again as desired.
