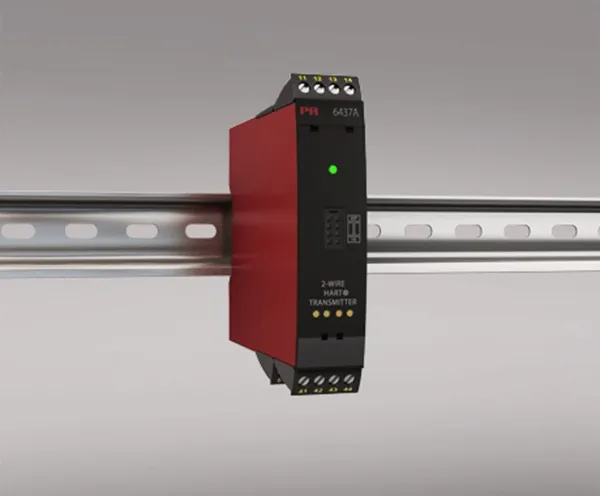

2-wire HART 7 temperature transmitter

2-wire HART 7 temperature transmitter

•   RTD, TC, potentiometer, linear resistance and bipolar mV input
•   Single or true dual inputs with sensor redundancy and drift detection
•   Wide ambient operating temperature of -50 to +85°C
•   Total accuracy from 0.014%
•   2.5 kVAC galvanic isolation
•   Full assessment to IEC61508 : 2010 for use in SIL 2/3 applications

Application

• Temperature measurement of a wide range of TC and RTD types.
• Conversion of wide span linear resistance and potentiometer inputs to 4...20 mA.
• Conversion of bipolar mV signals to 4...20 mA.
• Integration into asset management schemes.
• Critical applications requiring superior accuracy and/or sensor redundancy and drift detection.

Technical characteristics

• True dual input transmitter, accepts the widest range of dual input combinations.
• Sensor redundancy - output automatically switches to secondary sensor in event of primary sensor failure, maintaining uptime.
• Sensor drift detection - alerts when sensor differential exceeds user-defined limits, for maintenance optimization.
• Dynamic variable mapping for process data in addition to the primary variable e.g. dual input features such as average, differential and min./max. tracking.
• Groundbreaking digital and analog signal accuracy over full input span and ambient conditions.
• Extensive sensor matching including Callendar Van Dusen and custom linearizations.
• Programmable input limits with runtime metering ensure maximum process traceability and sensor out of range protection.
• IEC 61508 : 2010 full assessment up to SIL 3 together with enhanced EMC Functional Safety testing to IEC 61236-3-1.
• 6437xxSx is suitable for the use in systems up to Performance Level “d” according to ISO-13849.
• Meets NAMUR NE21, NE43, NE44, NE89 and NE107 compliant diagnostics information.

Mounting / installation / programming

• DIN rail mounting with up to 84 inputs per meter.
• Configuration via PReset using PR5909 Loop Link /HART modem, or by Asset Management tool (e.g. Pactware, AMS, HART communicator).
• The 6437A can be mounted in zone 2 and zone 22 / Class I, Division 2, Groups A, B, C, D.
