Vertical Rail Lifter

Vertical Rail Lifter

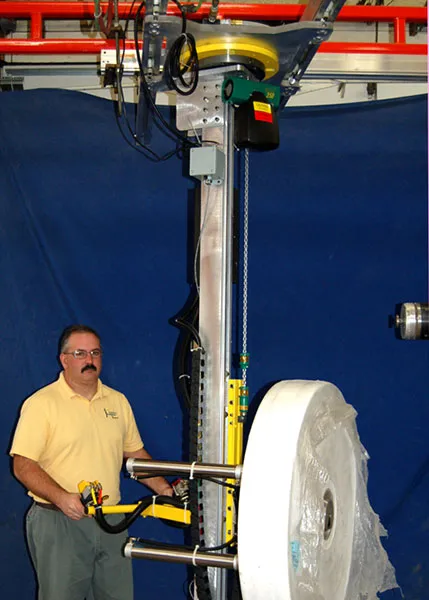

The Positech Vertical Rail Lifter (VRL), a lifting device, consists of a rigid vertical beam with moving rollers, which creates a stable lifting platform and eliminates swinging of a cable or chain. With 1,000 pounds of lift capacity and up to 100 inches of vertical travel, this vertical lifting device can be used as an ergonomic lift assist for reach – in, under and around obstacles.  Use this lift assist when there is a requirement for a lot of vertical travel and the overhead clearance.

Advantages

• 5:1 design factor minimum on all structural components
• Narrow design of the lift assembly minimizes obstructions in the operator’s line of sight
• Great for low headroom applications which require maximum vertical lift
• Lightweight and compact, easy to maneuver
• Multiple options available including: main post brakes, bridge brakes and trolley platform brakes

Performance

• 1,000 lbs. lift capacity and up to 100 inches of vertical travel
• Low Maintenance
• Does not require an air lubricator
• Allows for reach-in and off-center applications
• 360° continuous rotation around vertical axis
• Pneumatically operated, requires clean dry input pressure
• Mounting Options: overhead platform trolley or on a Positech Articulated Jib Boom
