Pneumatic Manipulator Arm

Pneumatic Manipulator Arm

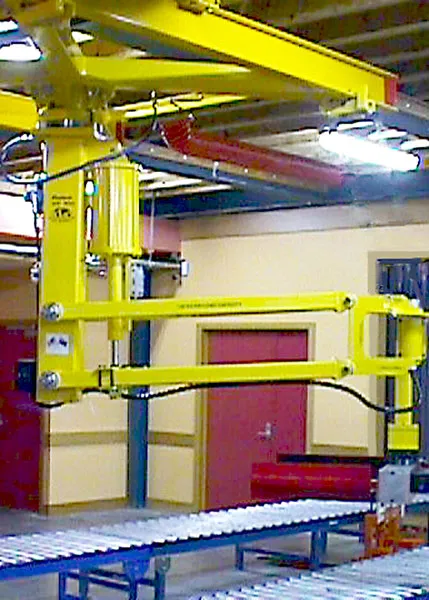

Positech’s pneumatic manipulator arm, the World Manipulator® (WM), is a low-headroom solution for manipulating payloads up to 1,000 pounds, providing rigid support and reach-in capability. This ergonomic lift assist can be used as an alternative to a sling and hoist or a forklift to improve safety, functionality and performance. The World Manipulator offers extended reach and lift, allowing an operator to reach into, over and around the work cell. The device’s off-center moment loading feature allows the operator to extend the end-effector and payload well beyond the end of the arm. This pneumatic manipulator arm is available in three model configurations. It provides up to 60 inches of vertical lift and flexible mounting options.

Advantages

5:1 design factor minimum on all structural components
Pilot operated lock valve on lift cylinder and gripper cylinders prevent downward arm movement and loss of payload if supply pressure is interrupted
Gripper Safety Circuitry available, prevents accidental release of unsupported payloads
Lost Load Cylinder is a separately sealed hydraulic device that protects the operator from any sudden, uncontrolled upward motion of the manipulator arms
Parallel linkage arms allow end-effector to remain parallel to the floor
Minimum Lift Circuit is standard, allowing controlled downward movement of payload
Floor mounted pedestal is provided with concrete anchor bolts, mounting hardware and leveling jacks for ease of installation (No grout required)
Does not require an air lubricator
Main post adjustable friction brake allows the operator to set arm motion for ease of operation
Complies with CE and other National Standards

Performance

360° continuous rotation around main post vertical axis
Includes air filter/regulator system. Does not require line lubrication
Standard flange mounting for adaptability to a variety of custom end-effectors
Pneumatically operated, requires clean dry input pressure
Precision bearings and thrust washers at rotation axes for smooth motion and long life
Standard pistol grip or optional ergonomic twist grip controls
End-of-arm rotating axis has up to 36,000 inch pounds of end-of-arm moment loading
Vertical axes brakes available
Mounting Options: overhead, trolley, pedestal, wall mount, column, machine or mobile/portable base
