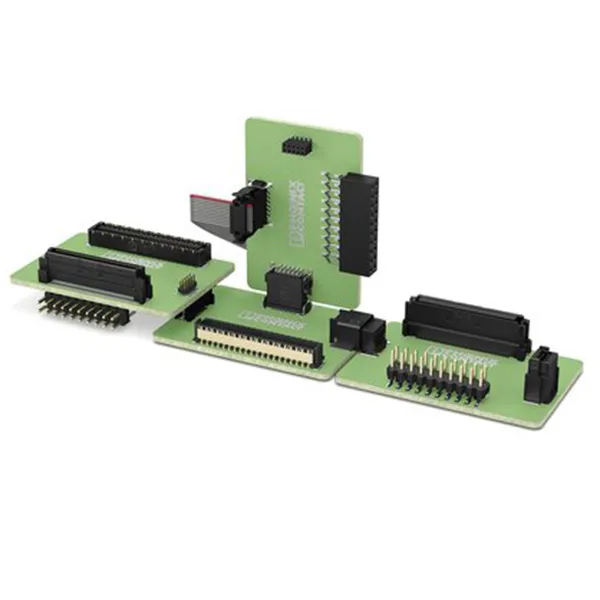

Finepitch series board-to-board connectors

FINEPITCH series board-to-board connectors for the connection of PCBs within the device

With the FINEPITCH series board-to-board connectors, Phoenix Contact provides shielded and unshielded solutions for signal and data transmission. This allows you to realize individual PCB orientations in all dimensions with different designs, stack heights, and numbers of positions in different pitches from 0.635 mm to 2.54 mm. Mezzanine, coplanar connections, and mother-daughter cards are also possible.

Your advantages

• Variability: board-to-board connectors in shielded and unshielded versions
• Reliable mechanical and electrical connections thanks to the double-sided contact system
• Flexible device design: various numbers of positions, designs, and stack heights with high wipe lengths
• Shielding with 0.8 mm pitch: excellent EMC properties
• Wide range of connection options: mezzanine and coplanar connections, mother-daughter cards, and connections with flat-ribbon cable with 1.27 mm pitch
