Variable Inductance AC Resonant Test Systems

Variable Inductance AC Resonant Test Systems

Variable Inductance AC Resonant Test Systems are used where the load is largely capacitive with very low real power losses such as power cables, gas insulated switchgear, generator windings, and dry tests of insulator strings. High Power High Voltage systems are typically used in fixed factory installations while smaller systems can also be mobile for onsite testing. Variable Inductance systems are typically designed to work with the local power system mains frequency.

• Steel grounded “dead” tank design is potential free
• Can operate in both parallel and series resonant modes
• Extended tuning range available via multiple output voltage taps

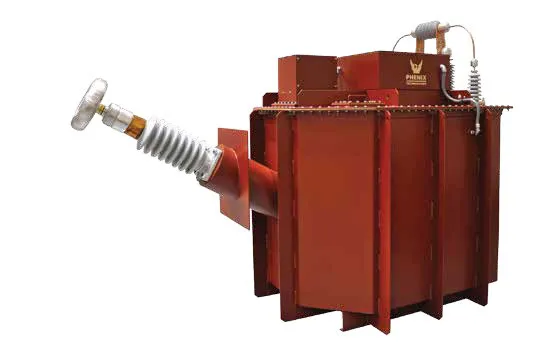

VARIABLE INDUCTANCE AC RESONANT TEST SYSTEMS UP TO 150 kV, TANK TYPE

• May have the bushing installed in either vertical or angled configuration depending upon application
• Primary application is factory or onsite cable, capacitor and rotating machine testing
