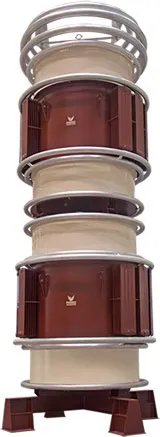

AC Dielectric High Potential (Hipot) Test Systems
AC Dielectric High Potential (Hipot) Test Systems
Phenix Technologies manufactures a complete line of the most advanced AC Dielectric Test Systems with voltage and power ratings to meet your testing requirements. Our systems function in compliance with IEC, IEEE, and other recognized national and international industry testing standards.
Phenix Technologies offers:
- Ratings from 1 kV to over 1 million volts AC
- Rugged design for field, industrial, and laboratory settings
- Stand-alone, modular, caster-, truck-, trailer- or skid-mounted systems
- Models meeting specific standards, such as ASTM D149 for material testing and ANSI A92.2 for insulated work platforms
- Oil insulated or epoxy cast high voltage transformers
- Safety features to protect personnel and equipment
- Long-term customer support from fully experience and knowledgeable staff
Products requiring dielectric testing include
- Rotating Machines
- Power Cables
- Bushings
- Instrument Transformers
- Lightning Arrestors
- Connectors
- HV Components
- Insulators
- Personal Protective Equipment (Rubber Goods) for Live Work
- Cable Joints/Splices
- Switchgear (Air, Gas, Oil)
- Transformers, Shunt Reactors
- Fuses
- Insulation Materials (Oil, Paper)
- Power Capacitors
- Coils
- Circuit Breakers
- Transmission Line Hardware
Typical testing applications:
- Type testing
- Acceptance testing
- Routine testing
- Preventative maintenance
AC DIELECTRIC TEST SYSTEMS FOR LABORATORIES
Phenix Technologies has supplied AC Dielectric Test Systems for over 40 years and is recognized worldwide for leadership and innovation in technology. Phenix Technologies offers standard models, designs modified to supply a variety of physical configurations suitable for varying installation requirements, and options to add significant testing capabilities.
Main System component options:
- High Voltage Transformer
- Air-insulated type
- Oil-filled, fiberglass Cylinder type
- Oil-filled, steel Dead Tank type
- Controls
- Basic to advanced, with software for remote control, data acquisition, automation capabilities
- Voltage Regulator (Air-insulated, Variable Auto-transformer)
- Separate or containing the operator control panel to save space and simplify set-up procedures
The sizing of an AC Hipot is determined by your target test voltage, how much current you require, and if you plan to measure partial discharge
