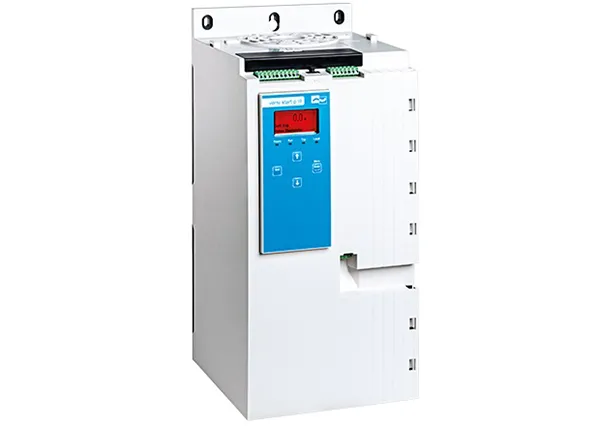

Soft Starter with Inrush Current Limiter VersiStart p II

Soft Starter with Inrush Current Limiter VersiStart p II

Features Soft Starter

•   two-phase controlled dgital-soft starter (11-800kW)
•   integrated bypass
•   current and torque reduction during acceleration
•   USB port
•   comprehensive and customizable motor operating performance
•   display graphical LCD - real time graphs of motor operating performance
•   degree of protection IP20 up to 135A
•   motor PTC connection

Functions Soft Starter

•   adjustable initial start current level up to 600% of nominal rating
•   remote control inputs (2x fixed, 2x programmable)
•   reay outputs (3x programmable)
•   24VDC output
•   analog output
•   divers soft start/stop control types
•   units with 600V upon request

Preferred application areas

•   electric pumps
•   heat pumps
•   vacuum pumps
•   ventilators and fans
•   travelling cranes
•   extraction systems
•   compressors
•   stirrers
•   centrifuges
•   saws
•   conveyors
•   woodworking machines
•   grinding machines
•   textile machines
•   packaging machines
•   printing machines
•   drives with high load
•   others
