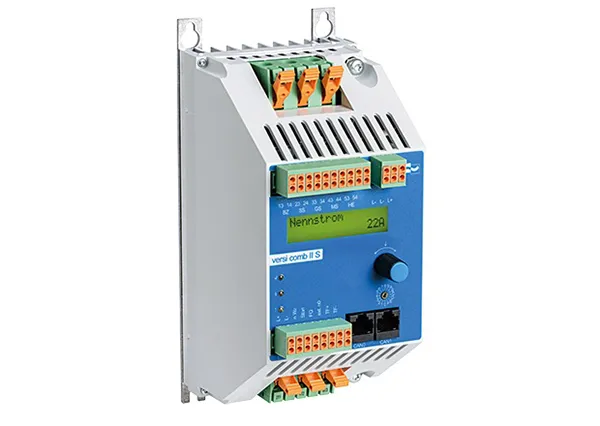

Soft Starter & DC Brake in one device VersiComb II Safe

Soft Starter & DC Brake in one device VersiComb II Safe

Soft Starter & DC Brake in one device VersiComb II Safe

Features

  •   two-phase controlled soft start
  •   integrated by-pass relay
  •   reduction of starting current peaks
  •   DC braking
  •   integrated braking contactor
  •   integrated standstill detection
  •   monitoring of stopping time
  •   suitable for all asynchronous motors
  •   suitable for IE1, IE2 and IE3 motors
  •   self-optimizing soft start and braking
  •   CANopen on board
  •   degree of protection IP20
  •   plugable push-in control terminals
  •   meets trad assoc. requirements for
  •   PL =c, acc. to EN13849-1:2008

Functions

  •   parameterization via keypad or CAN-Bus
  •   motor auto tuning
  •   potential-free control inputs and outputs
  •   TVR or current controlled soft start
  •   motor temperature monitoring (PTC, KTY, PT1000)
  •   device protection
  •   motor protection
  •   tool speed monitoring (external speed sensor required)
  •   device fault relay (safety relevant)
  •   summary fault relay

Preferred application areas

  •   centrifuges
  •   saws
  •   milling machines
  •   shakers
  •   vibration machines
  •   hydraulic presses
  •   industrial dryers
  •   grinding machines
  •   edge pressing machines
  •   deburring machines
  •   meat grinders
  •   mixers
  •   other
