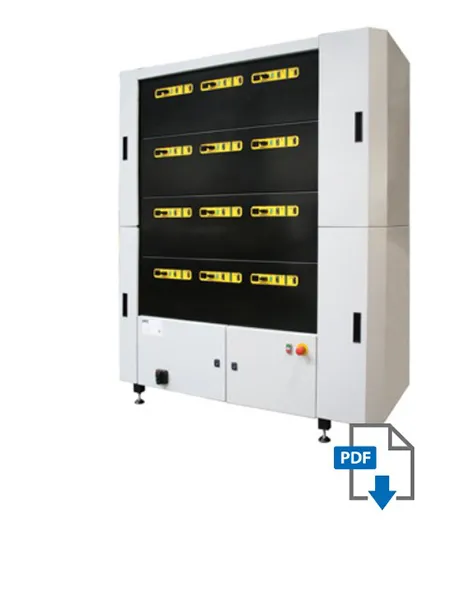

SBT10060 High Power Equipment for Batteries
The SBT10060 is a 16-Channel Battery Tester, ideal for testing and evaluating HEV as well as industrial battery modules and packs. Our equipment is designed for both laboratory and production scale applications, including formation and ranking.
By adding more test channels to the master controller and more test systems to the same network, the number of channels can easily be expanded.
Preparing a test can be done off-line on an existing desktop PC, running our LifeTest™ application. The End User can configure the specific test by filling out the Event Table with the individual cycle steps. For complex or HEV cycles, the software allows a direct import to the events through a preformatted CSV file.
The system supports current, voltage, power and resistive based loads, with a minimum pulsing width of 1 msec. Our SBT10060 system will give you ultra fast switching capabilities between charging and discharging modes, guaranteeing you the accuracy you need.
Every channel is independent, microprocessor-controlled and features a dynamic electronic load to obtain very high accuracy, reliability and flexibility. Using a CANbus or SMbus interface the unit can communicate with the battery module or pack to obtain additional data, such as the individual cell voltages and temperatures.
The power MOSFETS are mounted on a central liquid cooled heatsink which will evacuate the discharging heat to a central heat exchanger.
