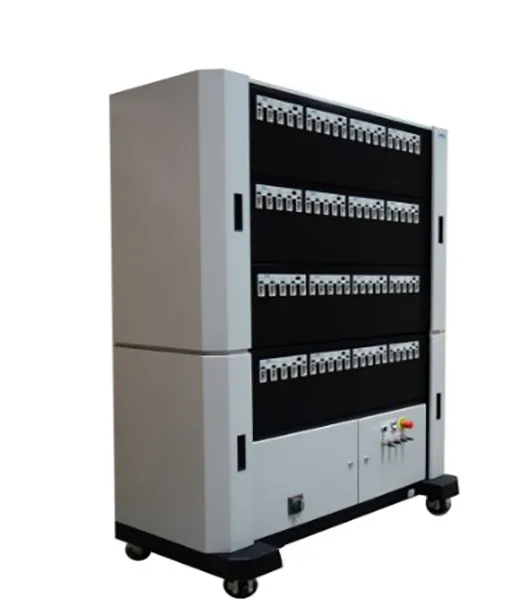

CT0550 High Power Equipment for Cells
The CT0550 is a 80-Channel Battery Tester, ideal for testing and evaluating cells. This test equipment is used for high volume testing such as repetitive cycling, incoming goods inspection and validation.
Preparing a test can be done off-line on an existing desktop PC, running our LifeTest™ application. The End User can configure the specific test by means of an Event Table. The PC communicates with the Battery Tester over Ethernet to load the test conditions and upload the measurement data. Every channel is independent and uses a POWER MOSFET to obtain a very high accuracy, reliability and flexibility. 80 independent channels of 5V, 50A are mounted in 1 test rack. Channels can be paralleled to a max of 1000 AMPS.
The system comes standard with 2 current ranges, that are automatically switched. Optionally, you can add analog and digital in- and outputs to the system via the auxiliary I/O modules of 8 slots each (e.g. temperature sensors, voltage inputs, pressure sensors, digital output, …)
The system supports current, voltage, power and resistive based loads, with a minimum pulsing width of 10 msec. Our CT0550 system will give you ultra fast switching capabilities between charging and discharging modes, guaranteeing you the accuracy you need.
