Paneltronics Incorporated

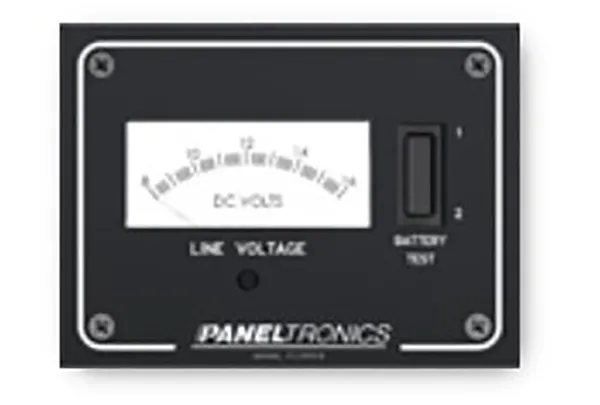

DC Volt Meter Panel

• Completely pre-wired to reduce installation time

• Over 2000 interchangeable function labels available

• Panel is 1/8” corrosion resistant aluminum coated with two-part polyurethane

• 2 1/2” edge lighted analog meter with front zero adjust. Optional DIGITAL meter with 0.56” numeric, red LED, display.

• Standard Voltage 12V. 24V and 32V OPTIONAL

• Battery Test: Monitor two battery banks with a Euro-style rocker switch.

• Metering: 8-16 Volt expanded scale is standard. Other analog scales and DIGITAL meters are also available.

• Dimensions: 5 1/2” W x 4 1/8” H x 2 1/4” D
