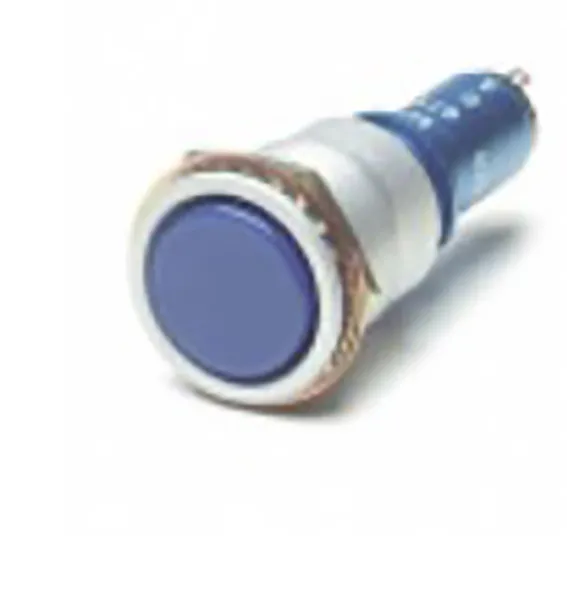

Series 2100 Pushbutton Switch

In the Series 2100, Electro-Mech offers a slimline version of its standard illuminated pushbutton switch. A unique product design features silver slide bar action reducing con- tact bounce to an absolute minimum, thereby giving longer life and greater reliability.

Specifications

Ratings: 30 volts DC or 125 volts AC; 2.0A resistive, 0.5A inductiveWeight: 0.8 oz. (23 g) (approx.)Operating Pressure: 2 lbs. + 1 lb. (908g + 454g)Plunger Travel: 0.187 nominal (4.7mm)Actuations: 100,000 minimumContacts: Silver plated (gold plating optional)Terminals: Standard EMC solder lug. Accepts two 20 AWG wires. PC pin terminals also available.Lens: Accommodates any standard EMC lens. See Single Lamp Lenses.Lamp or LED: Accommodates one T 1-3/4 (5mm) midget flange base lamp or LED. Lamp circuit is independent.
