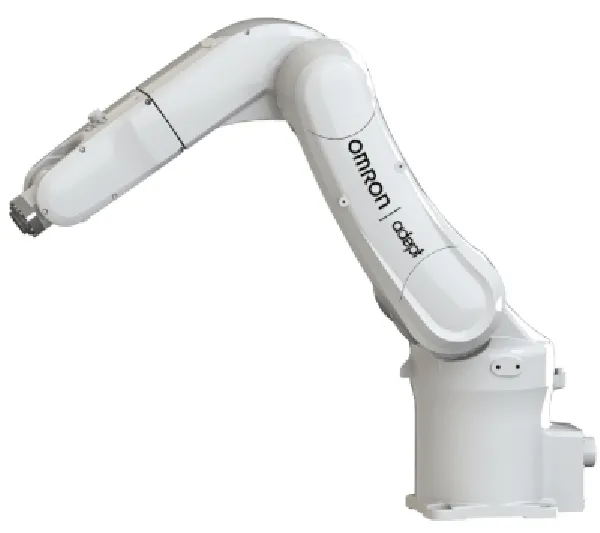

Viper

Viper

Articulated robot for machining,
assembly, and material handling

Our newest family of 6-axis robots. The Viper Articulated robot features 650 and 850-mm reach and is available in two different models; EtherCAT and Ethernet.

• Programmable through ACE software and eV+ language, or through the familiar IEC 61131-3 when using ePLC Connect.
• Diagnostics display enables faster trouble shooting
• Available in two different models; EtherCAT and Ethernet.
• High-resolution, absolute encoders to provide high accuracy, superior slow-speed following, and easy calibration
• New EtherCAT models to be used with the Robot Integrated Controller NJ-J
• High-efficiency, low-inertia Harmonic Drives and a lightweight arm to deliver maximum acceleration
• Reach 650 mm for Viper 650 and 855 mm for Viper 850
• Maximum payload 5 kg
• Weight 34kg for Viper 650 and 36kg for Viper 850
• 3D Bin Picking Solution integrated with ACE Software
