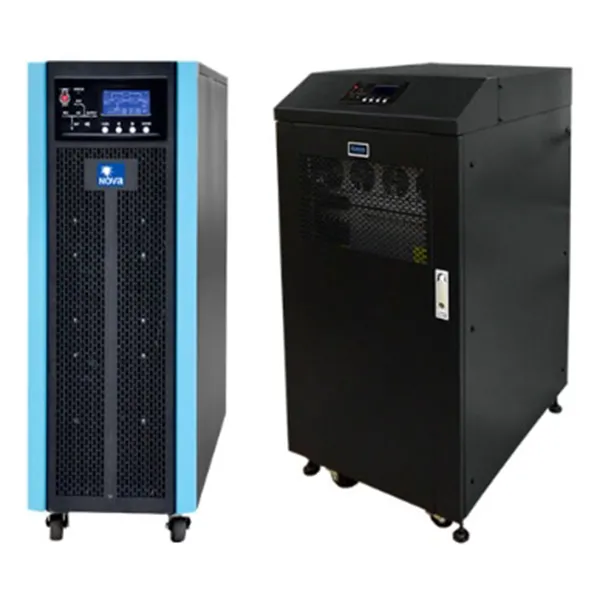

NC11 Series 10 – 30 KVA True Online COTS UPS
NC11 Series 10 – 30 KVA True Online COTS UPS
Nova Electric’s NC11-Series UPS utilizes advanced technology that increases performance and reliability. These units use dual high speed DSPs with digital control to ensure high quality power, high input power factor, and low input current distortion. Built in batteries or separate batteries are offered.
Note: Any UPS can be used with larger batteries to obtain higher run times. 75AH, 88AH and 100AH batteries are also available. Consult factory for run times.
FRIENDLY USER INTERFACE
LCDs and LEDs accurately display the comprehensive status of the UPS.UPS parameters can be modified easily according to different site applications via LCD or software.
COMPREHENSIVE AND RELIABLE PROTECTION
Self-diagnosis provide a complete UPS check-out at system start-up. Multiple protection circuits provide protection for overload, over temperature, battery over or under voltage, fan failure, and short circuits.
BATTERY RUNTIMES
10 KVA / 8 KW,4 MIN,WITH 20 PCS,12V / 9AH10 KVA / 8 KW,12 MIN,WITH 40 PCS,12V / 9AH15 KVA / 12 KW,6 MIN,WITH 40 PCS,12V / 9AH15 KVA / 12 KW,18 MIN,WITH 80 PCS,12V / 9AH20 KVA / 16 KW,4 MIN,WITH 40 PCS,12V / 9AH20 KVA / 16 KW,12 MIN,WITH 80 PCS,12V / 9AH30 KVA / 16 KW,6 MIN,WITH 80 PCS,12V / 9AH
INTELLIGENT CHARGING MANAGEMENT
The system intelligently controls the process of the charging and discharging, effectively improving the lifetime of the battery.
