North Easton Machine Company, Inc

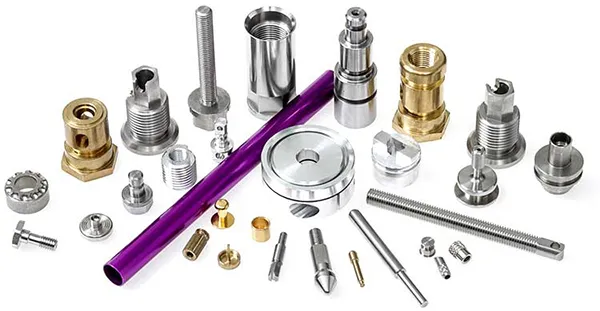

CNC Swiss Screw Machining

Capacity 0.03125”-1.250”/ 1mm-32mm

Tolerances to .0002"

Lengths to 12'

CNC Swiss machining technology offers one of the most cost-effective and accurate solutions for producing highly intricate parts, both small and long. Unlike conventional turning in which the material remains stationary and the cutting tools move to the material, CNC Swiss machining utilizes a support system, called a guide bushing, allowing the material to move under the cutting tools creating a very rigid “point of cut”.This greatly diminishes deflection and vibration, which helps to further improve machining accuracy. In fact, our highly advanced CNC Swiss machining centers can meet ultra-tight tolerances down to 0.0002".Quality in NumbersMany of our CNC Swiss machining centers are equipped with live tooling for cross drilling, tapping, and milling along with sub spindles for part pick off. This allows for simultaneous machining on both ends of a part for greater production output.
