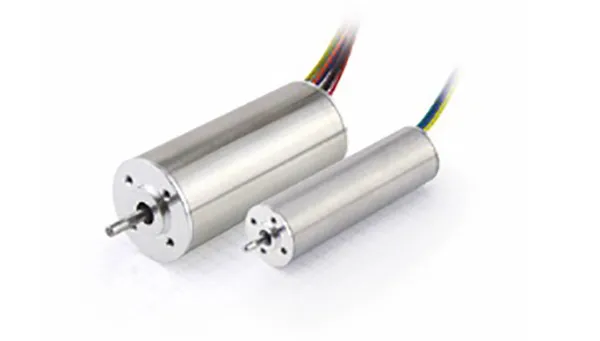

Slotless motors

Slotless motors

Description

In slotless BLDC motors, the stator consists of ring-shaped plates with a flat winding on the inside. The inductance of these motors is very low, but the current in the windings rises very rapidly

Technical Data

• Size
  0.63 in - 1.1 in
• Rated Power
  3.7 W - 29 W
• Rated Voltage
  12 V - 24 V
• Rated Speed
  8000 rpm - 25000 rpm
