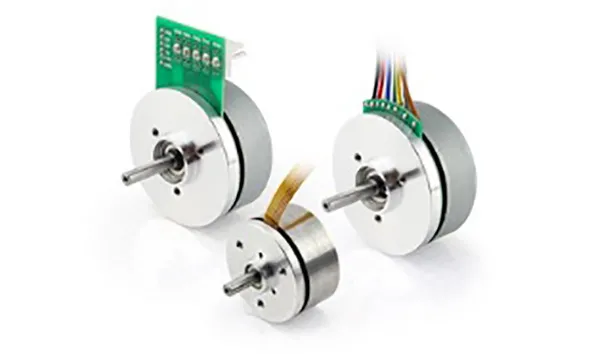

External rotor motors

External rotor motors

Description

External rotor BLDC motors are shorter than internal rotor motors and offer a cost-effective solution particularly for large series. In these motors the permanent magnets are mounted on the rotor

Technical data

• Size
  0.79 in - 3.5 in
• Rated Power
  5 W - 170 W
• Rated Voltage
  12 V - 48 V
• Rated Speed
  1670 rpm - 5260 rpm
