Multi-wing Australia

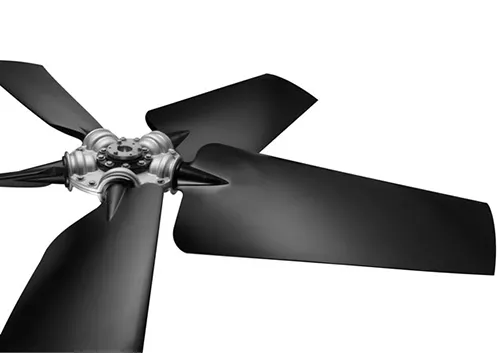

G Series axial fans

Fan design features:

• 2 to 8-blade configurations.

• Adjustable pitch angles with 1º increment ranging from 15 º to 50 º.

• Available with cast hubs accommodating 3, 5, 6 and 8 fan blades.

• A range of different mounting solutions are available from stock i.e. bosses with standard bore/keyway sizes and solutions incorporating taper lock bushings.

• Replacement fan blades available.

The G Series represents the largest diameter axial fans in the Multi-Wing product line and is also the largest thermo plastic axial fan in the world. It covers diameters from 980mm to 2746mm. G fans may be used on a wide range of applications and are available in 2- to 8-blade configurations in pitch angles from 20º to 50º in 1º increments. The fan is specifically aimed at large-size cooling applications such as cooling towers and condensers but can also be used for industrial heat exchangers, gas applications and for the petrochemical industry.
