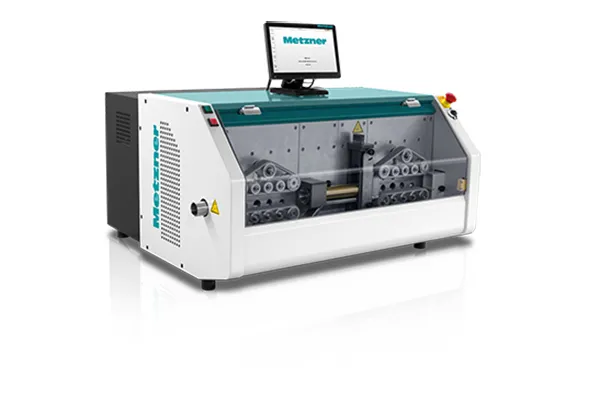

Metzner AM 5000- High Power Cutting Machine
METZNER AM 5000: HIGH POWER CUTTING MACHINE FOR LARGE CABLES
High power and versatility for large cross-sections
The Metzner AM 5000 range includes the flagship models for precise processing of thick cables up to 240 mm² section and 35 mm diameter. Even the basic specification models, with their high torque and powerful three-stage step motors offer the highest level of cutting and haul-off power. All models are equipped with as standard with the Metzner double-knife system that enables very varied and multi-stage processes to be performed. Moreover, with convincing operator-friendliness and long service life. Metzner AM 5000 models are also suited to processing thinner braided cables from 1.5 mm² The stripping full haul-off 1side/2nd side amount to 270-450 mm and 90-270 mm, for partial haul-off 450 mm and 270 mm. For interuption-free automatic production, a number of sensors monitor the material feeding If a material blockage occurs, the production stops automatically and the operator is informed about the cause of the fault.
Special Features
HEAVY-DUTY-VARIANT
The AM 5800 HD model is designed for processing particularly thick and heavy cables with up to 240 mm².
MULTI-STAGE INSULATION STRIPPING
All modes in the AM 5000 range enable automatic cutting to length and multi-stage stripping to be performed ( full and partial haul-off).
DOUBLE-KNIFE CUTTING MODULE
The Metzner double-knife cutting system for varied and multi-stage processing tasks. With unique power for cable sections up to 240 mm².
DOUBLE SYSTEM MONITORING
To ensure automatic production without interruptions, several sensors monitor the material feeding
VARIANT WITH CIRCUMFERENTIAL ROTARY CUTTING MODULE
The AM 5850 model with circumferential rotary cutting module is suitable for processing screened hybrid cables, control wires with thin outer cover and many more.
