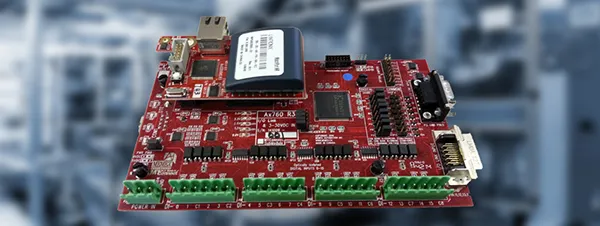

MERLIN AX760-MTC
A quick and easy way to take the first step towards data-driven manufacturing
The MERLIN AX760-MTC is a fully configurable MTConnect hardware adapter that enables your machine tool to communicate critical operational information using the MTConnect standard protocol. Part of the MEMEX smart manufacturing tool-kit, this adapter allows you to easily “MTConnect” every machine tool on your shop floor to output machine state data, alarm conditions and controller modes and more, in real-time.
FEATURES & BENEFITS
Features:
Native connectivity to any I/O link equipped Fanuc controllers including late model 16 /18 controls and all i-series models.
Simple Phoenix style quick disconnect connectors
MTConnect compliant V1.2. Field upgradeable to newer releases
Plug into Fanuc I/O link bus and passively detect data on both the X (operator inputs) and Y (lights) addresses from 0.0 to 127.7 as well as 16 additional digital inputs
Supports part counting through predefined part count address spaces
Applet to configure monitor the Fanuc I/O link PMC address space to MTConnect tags
Comprehensive “Expression Builder” enables you to combine inputs and create expressions to derive critical outputs to drive your efficiency clients.
MTConnect allows for Feedrate and Spindle Override to be represented as a multi-step percentage value from the Machine Operator Panel
16 digital inputs, optically isolated—8 groups of 2 (DI:3-30VDC, 1A), quick disconnect
Power Source—12-24VDC
15KV Surge protection
Self-resetting fuses
Non-volatile memory protects set up in the event of an extended power loss
Easy magnetic mount (screw-less) anywhere in the metal cabinet
Native connectivity to MERLIN Tempus and Tempus EE
