Manu Electronics Pty Ltd.

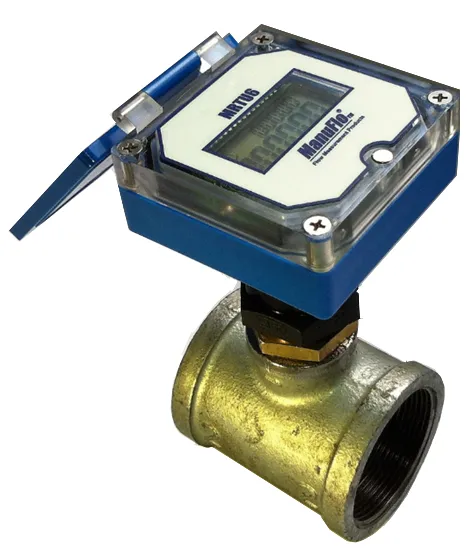

MRTU6 Resettable Total Paddlewheel Flowmeters

FEATURES:-

• 6 digit LCD resettable or non-reset totaliser (12mm high), 5 digit flowrate

• Total in Litres or optional KiloLitres

• Flowrate in LPM or optional LPS

• Easy reset of total via flip top lid.

• ± 2.5% accuracy, at 0.7 - 8.0 m/s flow velocity

• Repeatability: ± 1.0%

• Internal 3.6 v Lithium Battery (8+ year life).

• Max. Process Temperature 110 ºC

• Max. Ambient Temperature 55 ºC

• Max. Operating Pressure: PVC Tee’ options rated to 1100 kPa

• All Metal Tee options are rated 2000 kPa

• With simple installation pipe fittings/adapters.

• For pipe sizes from 20 to 100 mm (short stem version) or 125 to 500mm (long stem version)

• Optional pulse output, via M12 IP67 plugset
