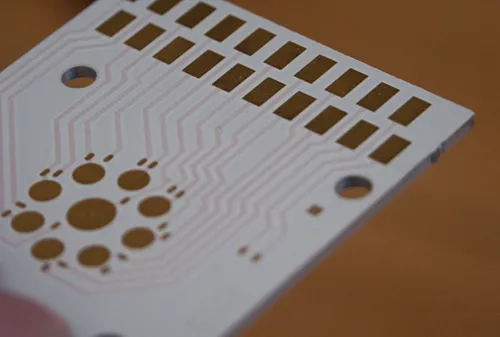

Metal base-LED

Metal base & LED

MMAB have become a development partner for aluminum substrates and Printed Circuit Boards for LED. This have given us an advantage on the market for cost efficient manufacturing of metal base boards in our Swedish factory.

Metal Base

Metal base boards is used for applications where large amounts of heat must be transferred, for example high intensive LED or high current products such as power supplies, frequency controllers or servo controlles. Metal base boards are normally using aluminum base on which a single layer conductive plane is separated by a ceramic insulation layer with high thermal conductivity. The conductive copper layer can be anything from 12 µm to 210 µm.

Standard material for LED

There are cost efficient base material for LED-applications with low heat transmission, such as FR-4 or CEM-3 with thermal conductive properties. We have also experience of white soldermasks providing even light reflection with repetable color temperature even after soldering processes.
