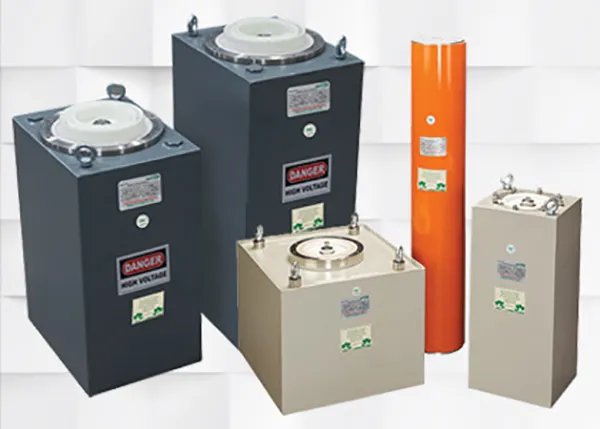

Low Inductance Capacitors
Low Inductance Capacitors
Manufacturing and Quality Control
Imported bi-axially oriented double side hazy Polypropylene film is used as dielectric and 99.9% pure Aluminium foil is used as conductor in making of capacitors. Winding of the element is carried out on a modern Automatic winding machine, in a class 100 environment. With extended foil design, with edge and end folding of aluminium foil, over voltage stress at the edges of the buried foil area is avoided. This also improves Partial Discharge Inception Voltage Value.
To identify weak spots / pin holes in the Polypropylene film, each element is tested with DC voltage in dry pressed conditions. Numbers of elements are interconnected in series – parallel combination depending on Voltage rating and energy of the Capacitor, with the help of modern soldering technique.
The dry pack is wrapped with several layers of high quality insulating paper before inserting it into a pre treated / degreased CRCA / Aluminium/Stainless Steel Container and the Top lid is welded by semiautomatic Pulse TIG welding machine. Bushings of desired BIL are fitted on the lid ensuring leakproofness. The metal parts of terminals are manufactured from extruded brass/Stainless Steel 304 Grade.
All the terminal connections are tightened with torque wrench. The capacitors are then loaded in a PLC controlled autoclave for uniform heating and drying under vacuum for adequate period. After confirming the quality of drying by precision online monitoring instruments, Capacitors are then impregnated under vacuum with highly purified and degassed Non-Toxic non PCB impregnant. The capacitors are then subjected to all routine tests in accordance to IS 13666/ IEC-61071 with latest amendments.
Applicable Standards
IEC 61071and IS 13666Capacitors in accordance with other standards / against specifications can be manufactured upon request
Applications
Defense
Pulse forming network
Medical equipments like Defibrillators
Cable fault locators
Impulse generators
Metal forming
Magnetizers / Demagnetizers
Laser
Plasma Research
Spot Welding
Features
Custom Built Design
World Class Raw Materials
Low inductance (ESL)
Low series resistance ( ESR)
Volume Optimized and highly Reliable
Trouble free Long life performance
Environmental Friendly
