LPI, Inc

4404 Anderson Drive, Eau Claire, WI 54703 U.S.A.

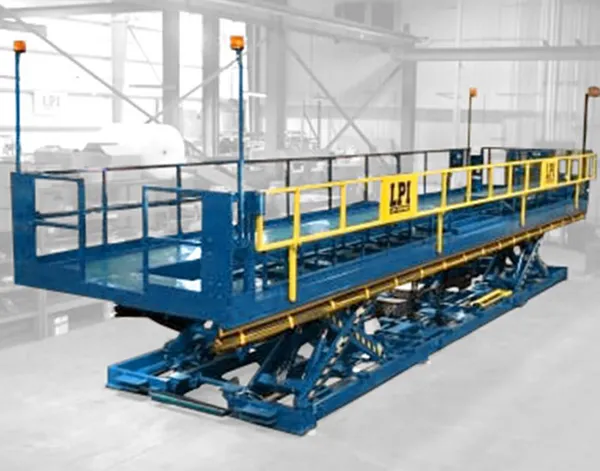

WORK PLATFORM SCISSOR LIFT

LARGE INDUSTRIAL SCISSOR LIFT WITH SWING DOWN RAIL IDEAL FOR AIRCRAFT WING PAINTING, ASSEMBLY AND INSPECTION.

Electric / hydraulic powered scissors lifts
Platform Dimensions: 40ft.-4in. long x 9ft.-2in. wide
Opening in center of platform: 36ft. long x 30in. wide
Raised platform height of 66 in.
Lowered height of 26 in.
1,000 lbs. capacity
One side rail on platform collapses to allow for product positioning
Control stations in (4) locations on platform
Accordion skirting around base of lift
Light curtain to detect presence of product when in position
Lift travel speed: Up to 8 ft./min.
Multiple safety features to prevent uncontrolled descent or inadvertent activation of platform
OSHA approved lock-out/tag-out electrical disconnect
Maintenance lighting
Ideal for aircraft wing painting, assembly and inspection
