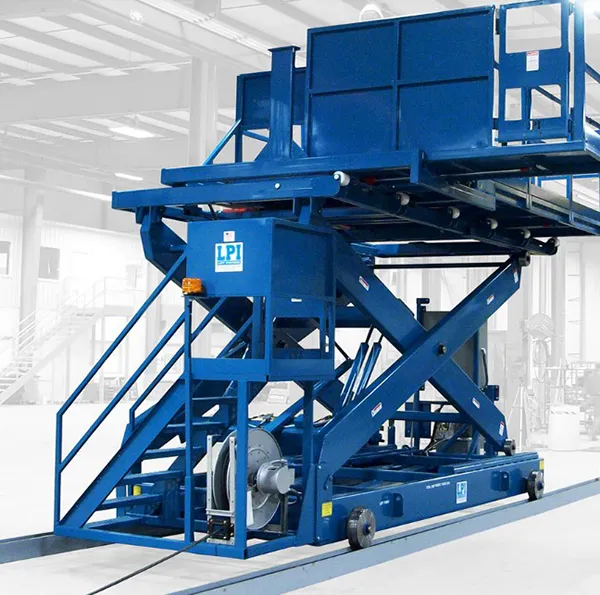

RAIL GUIDED SCISSOR LIFT

CUSTOM SCISSOR LIFT WITH MULTIPLE SIDE SHIFTING PLATFORMS

Electrical and electric/hydraulic powered
Raised platform height of 15ft.
Main platform: 16ft. long x 8ft. wide
Main platform can shift to one side and cantilever 5ft. over base
Auxiliary roll-out platform: 8ft. long x 3ft. wide
Additional roll-out section on one end of main platform extends the side reach an additional 4ft.
Combination of decks allows worker to extend out 9ft. from the side of the lift base
Platform capacity: 2,500 lbs.
X-Axis: 2 speed selections with maximum of 40 ft./min.
Y-Axis: Main platform side-shift 10 ft./min.
Y-Auxiliary: Roll-out section 10 ft./min.
Z-Axis: 12 ft./min.
