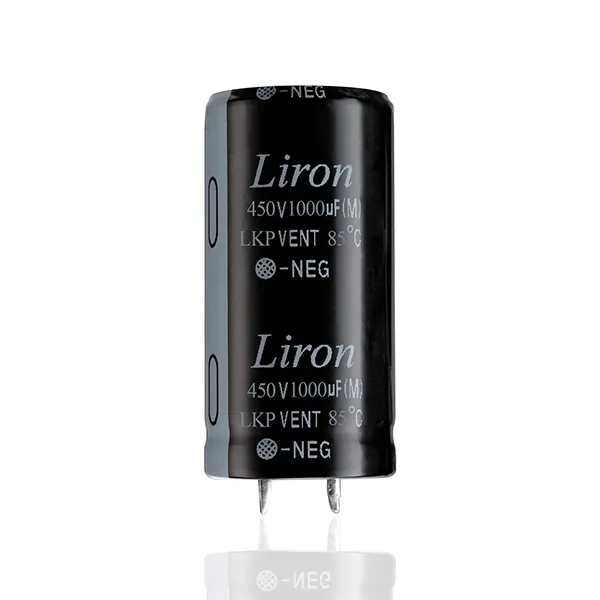

Standard snap in type aluminum electrolytic capacitor
450V working voltage 85 centigrade standard snap in type aluminum electrolytic capacitor
Liron is a professional capacitor manufacturer focusing on snap-in, screw terminal, radial type aluminum electrolytic capacitors and film capacitors. Liron owns world-class production equipments which can offer 120,000,000 pcs production output per month for its distinguished clients worldwide. Liron superior capacitor can match low ESR, long lifetime, low resistance, low leak current, High working voltage and more different requirements.
Specification of this 450V working voltage 85 centigrade standard snap in type aluminum electrolytic capacitor.
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Liron
- Model Number: LKP2W681MS050K
- Type: Snap in Aluminum Electrolytic Capacitor, snap in aluminum electrolyte capacitor
- Application: General Purpose,
- Package Type: Carton
- Rated Voltage: 450V
- Operating Temperature: -40~85℃
- Product name: snap in type aluminum electrolyte capacitor
- Capacitance: 680μF
- Load life: 2000 hours
- Size: 35*50mm, or as customized
- ODM service；larger capacitance, bigger size, larger working voltage, longer lifetime, lower ESR, etc.
- Certificate: ISO9001, ISO14001,ROHS,
- Products supply: Original new
LKP series is a standard level snap in type aluminum electrolyte capacitor that matches following SPEC.
1. LKP standard snap in type aluminum electrolytic capacitor can be used in switching power, frequency converter, air conditioning,for welder and PCB mounting etc.2. Size can be customized according to your design.3. The terminal type is varied from pins to soldering lug according to your design.4. OEM/ODM is welcomed, can be customized according to your requirement.5. For long life 85℃ product, please check LKQ series.
6. For 105℃ standard product, please check LKG series
Liron is a professional capacitor manufacturer focusing on snap-in, screw terminal, radial type aluminum electrolytic capacitors and film capacitors. Liron owns world-class production equipments which can offer 120,000,000 pcs production output per month for its distinguished clients worldwide. Liron superior capacitor can match low ESR, long lifetime, low resistance, low leak current, High working voltage and more different requirements.
Parameters of this 450V working voltage 85 centigrade standard snap in type aluminum electrolytic capacitor company
|
Item
|
Performance Characteristics
|
|
operating Temperature range
|
-40℃～+85℃
|
-25℃～+85℃
|
|
Rated voltage range
|
10V～250V
|
315V～500V
|
|
Capacitance tolerance
|
±20%（20℃，120Hz）
|
|
Leakage current
|
1≤0.01CV（μA）or 1.5mA(Whichever is smaller){20℃，after 5 minutes}
C=Nominal capacitance (μF),V=Rated voltage(V)
|
|
Dissipation Factor
(20℃，120Hz）
|
UR(V)10~1625~35506380-100160-200250~500tanδ0.450.350.30.250.20.150.15
|
|
Stability at Low Temperature
(impedance ratio at 120Hz)
|
UR(V)1016-100160-200250-400450-600Z（-25℃）/Z（+20℃）5434Z（-40℃）/Z（+20℃）1815108——
|
|
Load Life
|
After applying rated voltage with specified ripple current for 2000 hours at 85℃（the peak voltage shall not exceed the rated voltage), and then restored for 24 hours, capacitor shall meet the following requirement:
Capacitance changeWithin ± 15% of the initial value.Dissipation factorNot more than 150% of the initial specified value.Leakage currentNot more than the initial specified value.
|
|
Shelf Life
|
After storing for 1000 hours at 85℃，UR to be applied for 30 minutes and then restored for 24 hours , capacitor shall meet the following requirement:
Capacitance changeWithin ± 15% of the initial value.Dissipation factorNot more than 150% of the initial specified value.Leakage currentNot more than the initial specified value.
|
|
Standard
|
JIS C 5101-4
|
