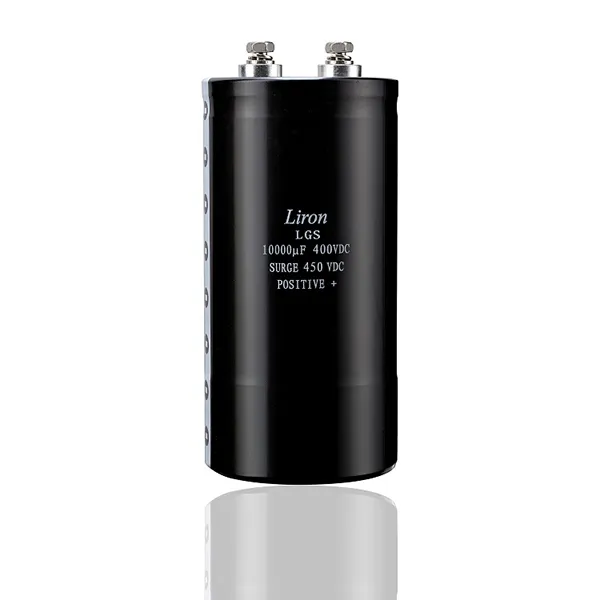

105 centigrade screw type aluminum electrolytic capacitor
10000uf and 400V 2000h 105 centigrade screw type aluminum electrolytic capacitor
LGS series is a 105℃standard level screw type aluminum electrolyte capacitor that matches following SPEC.
Specification of this 10000uf and 400V 2000h 105 centigrade screw type aluminum electrolytic capacitor company
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Liron
- Model Number: LGS2G103MF196Y
- Type: Screw type Aluminum Electrolytic Capacitor, screw type aluminum electrolyte capacitor
- Application: General Purpose,
- Package Type: Carton
- Rated Voltage: 400V
- Operating Temperature: -40~+105℃
- Product name: screw type aluminum electrolyte capacitor
- Capacitance: 10000μF
- Load life: 2000 hours
- Size: 90*196mm, or as customized
- ODM service；larger capacitance, bigger size, larger working voltage, longer lifetime, lower ESR, etc.
- Certificate: ISO9001, ISO14001,ROHS.
- Products supply: Original new
LGS series is a 105℃standard level screw type aluminum electrolyte capacitor that matches following SPEC.
1. LGS is a standard screw type aluminum electrolytic capacitor can be used in switching power, frequency converter, air conditioning,for welder and PCB mounting etc.2. Size can be customized according to your design.3. The terminal type is varied from different sizes.4. OEM/ODM is welcomed, can be customized according to your requirement.5. For long life 85℃product, please check LQX series.
6. For long life 105℃product, please check LHX series
Liron is a professional capacitor manufacturer focusing on snap-in, screw terminal, radial type aluminum electrolytic capacitors and film capacitors. Liron owns world-class production equipments which can offer 120,000,000 pcs production output per month for its distinguished clients worldwide. Liron superior capacitor can match low ESR, long lifetime, low resistance, low leak current, High working voltage and more different requirements.
Parameters of this 10000uf and 400V 2000h 105 centigrade screw type aluminum electrolytic capacitor manufacturer
|
Item
|
Specifications
|
|
operating Temperature range
|
-45℃~+105℃
|
|
Rated voltage range
|
25~450V.DC
|
|
Capacitance tolerance
|
±20%（20℃，120Hz）
|
|
Leakage current
|
0.01CV（μA）or 5 mA,Whichever is smaller [C=Nominal capacitance (μF),V=Rated voltage(V)]
|
|
Dissipation factor
|
Less than the value specified in the standard products table.
|
|
Permissible ripple current
|
As specified in the standard products table.(105℃, 120Hz)
|
|
High-temperature load
|
After the rated voltage with specified ripple current is applied at 105℃ for 2000 hoursCapacitance change± 15% or less of the initial value.Dissipation factor175% or less of the initial specified value.Leakage currentSpecified initial value or less
|
|
Standard
|
JIS C 5101-4
|
